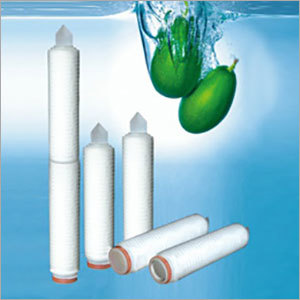

Folded Round PTFE Filter Core

Folded Round PTFE Filter Core
Folded Round PTFE Filter Core
Send Inquiry
Product Code : 06
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
Product Description

Folded Round PTFE Filter is available with inherent hydrophobic membrane that ensures to provide a highly porous structure. It is designed to provide high flow rates with matchless throughput and accuracy. It is ideal to remove all types of phagocytes, particles as well as bacteria having the size of more than 0.01 µm. It comes with matchless chemical as well as thermal stability to provide the best performance in different applications and sectors.

Details:

  • Inherent hydrophobic PTFE membrane with a highly porous structure ensures high flow rates, great throughput and high precision.
  • It can 100% remove all kinds of phagocyte, bacterium and particles above 0.01um in the process of gases filtration for 0.2um.
  • Excellent chemical compatibility and thermal stability
  • The biological safety of all materials of construction meet the USP class VI for plastics.
  • Advanced technology of thermally bonded media with out any adhesives or additives, do not bring the second pollution.

Technical Specifications

Items

Technical Specifications

Absolute pore size rating

0.1um, 0.2um, 0.45um

Filtration area

0.65m2

Retention rate

100%, 10 CFU/cm2

Max. operating temperature

90oC, 0.21MPa

Sterilized temperature

121oC, 30min

Max. differential pressure

Forward 0.42Mpa, 25oC, reverse 0.2MPa, 25oC

Water flow rate (10” length)

0.1um>3L/min, 0.2um>7L/min

0.45um>11L/min (23oC, 0.015 mPa)

Air flow rate (10” length)

0.2um>350m2/hr (P=2 kg/cm2, p=0.1 kg/cm2)

Integrity test BP (IPA: Water/60:40)

0.1um>0.14MPa, 0.2um>0.10Mpa

0.45MPa>0.07MPa

Trade Information
  • FOB Port
  • China Shanghai
  • Payment Terms
  • Telegraphic Transfer (T/T)
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
