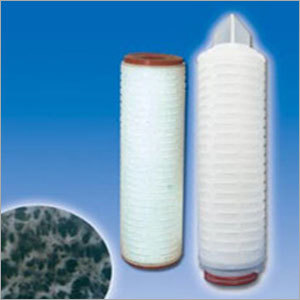

Folded Round PES Filter

Folded Round PES Filter
Folded Round PES Filter
Send Inquiry
Product Code : 03
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
Product Description

The hydrophilic polyethersulfone membrane of high-end Folded Round PES Filter is available with a distinguished asymmetrical pore structure to ensure to show low protein-binding structure along with high flow rates.  The support layer of the filter is designed for the pleated filer cartridges to provide maximum effectiveness in the filtration area as well as service life. In addition to this, it is developed with thermal welding methods and technologies without any additives and pollution.

Details:

  • Filter cartridges with polyethersulfone membrane
  • The inherently hydrophilic polyethersulfone membrane distinguished itself by having a asymetrically designed pore structure, exhibits the low protein-binding, high flow rates and high throughputs.
  • The support layer material, specially designed for the pleated filter cartridges, maximizes the effective filtration area adn the service life.
  • All the materials of construction meet the biological safety standards of the USP plastic class VI, ensure low extractables in a wide variety of fluids and applications.
  • Each SE cartridge is integrity tested during manufacturing and identified by a unique serial number for complete traceability of manufacturing history and for user's traceability system.
  • Thermal welding techniques, no additives and no second pollution.
  • Wide range of chemical compatibility and applications.

Technical Specifications

Items

Technical Specifications

Filtration accuracy

0.1um, 0.2um, 0.45um, 0.65um

Filtration area

0.6m2

Retertion rate

100%, 102 CFU/cm2

Max. operating temperature

90oC, 0.20 MPa (SE-T)

Sterillized temperature

121oC, 30min

Max differential pressure

Forward 0.42 MPa, 25oC, 0.2 MPa, 25oC

Water flow rate (10o length)

0.1um>6L/min, 0.2>15L/min

0.45um>21L/min, (23oC, 0.01MPa)

Endotoxin

<0.25EU/ml

Integrity base, BP (water 25oC)

0.2um>0.30Mpa, 0.45um>0.18MPa

0.65MPa>0.12MPa
